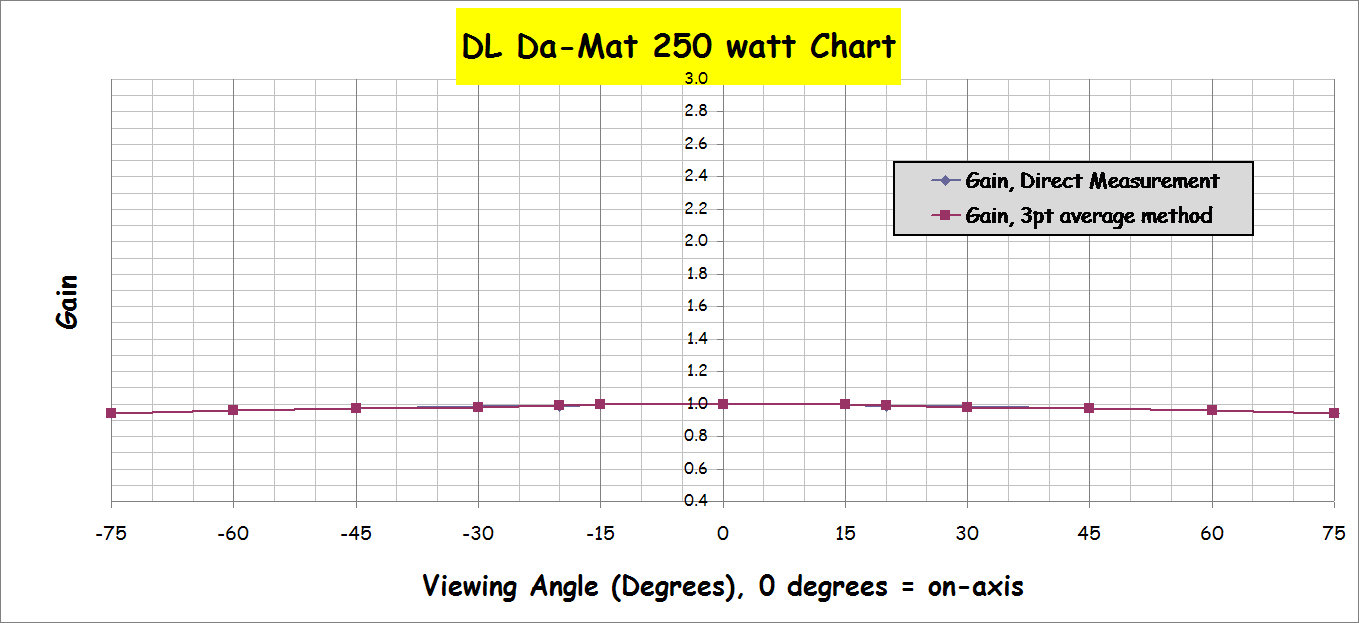

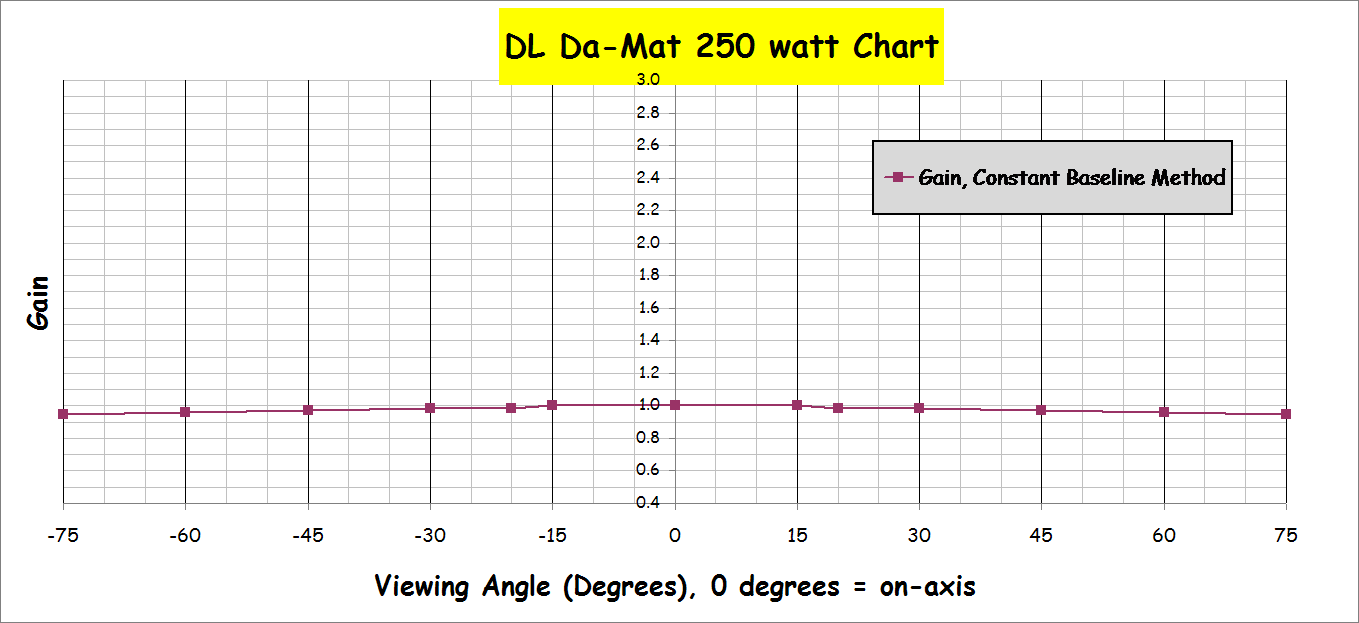

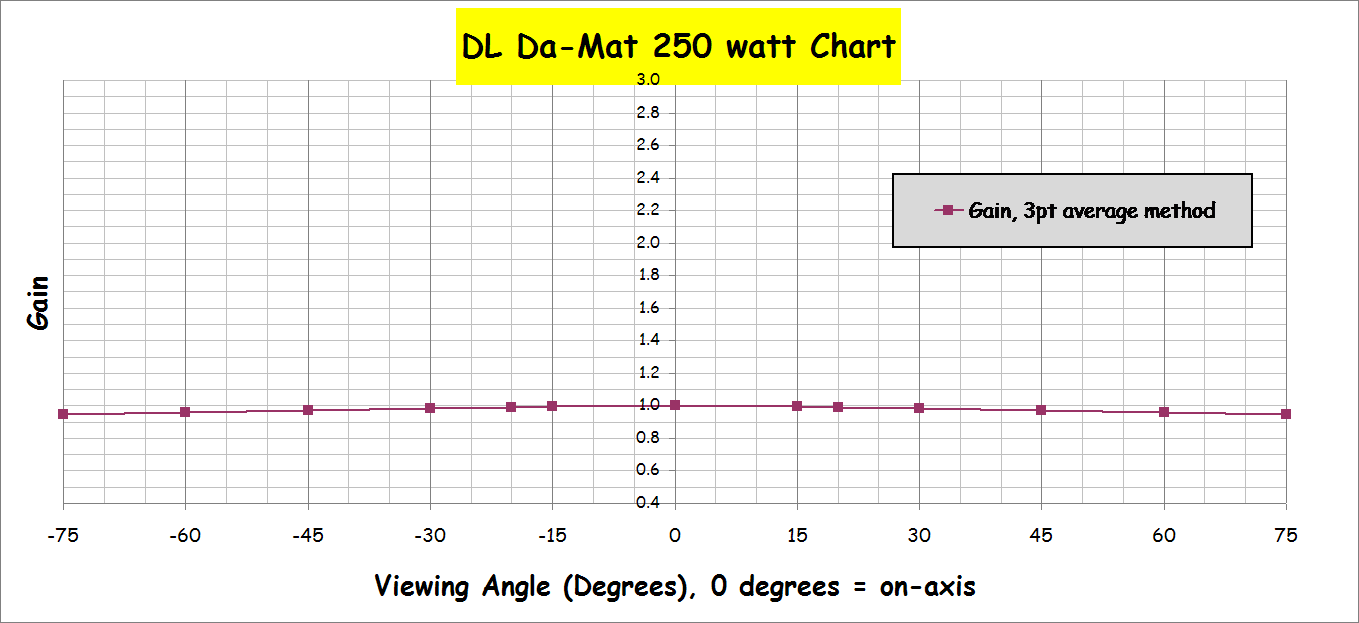

Angle (Degrees, 0 degrees = on-axis) | MgCO | Sample | Gain | Angle (De | MgCO | Sample | Gain, Direct Measu | Gain, 3pt average method | Gain, Constant Baseline Method | ||||
0 | 9.6 | 9.7 | 1.01 | 75 | 9.4 | 8.8 | 0.936 | 0.936 | 0.917 | ||||
15 | 9.6 | 9.7 | 1.01 | 60 | 9.5 | 9.1 | 0.958 | 0.961 | 0.948 | ||||
20 | 9.5 | 9.6 | 1.01 | 45 | 9.5 | 9.4 | 0.989 | 0.982 | 0.979 | ||||
30 | 9.5 | 9.5 | 1.00 | 30 | 9.5 | 9.5 | 1.000 | 1.000 | 0.990 | ||||
45 | 9.5 | 9.4 | 0.99 | 20 | 9.5 | 9.6 | 1.011 | 1.007 | 1.000 | ||||
60 | 9.5 | 9.1 | 0.96 | 15 | 9.6 | 9.7 | 1.010 | 1.010 | 1.010 | ||||
75 | 9.4 | 8.8 | 0.94 | 0 | 9.6 | 9.7 | 1.010 | 1.010 | 1.010 | ||||
-15 | 9.6 | 9.7 | 1.01 | -15 | 9.6 | 9.7 | 1.010 | 1.010 | 1.010 | ||||
-20 | 9.5 | 9.6 | 1.01 | -20 | 9.5 | 9.6 | 1.011 | 1.007 | 1.000 | ||||
-30 | 9.5 | 9.5 | 1.00 | -30 | 9.5 | 9.5 | 1.000 | 1.000 | 0.990 | ||||
-45 | 9.5 | 9.4 | 0.99 | -45 | 9.5 | 9.4 | 0.989 | 0.982 | 0.979 | ||||
-60 | 9.5 | 9.1 | 0.96 | -60 | 9.5 | 9.1 | 0.958 | 0.961 | 0.948 | ||||
-75 | 9.4 | 8.8 | 0.94 | -75 | 9.4 | 8.8 | 0.936 | 0.936 | 0.917 | ||||
|
|||||||||||||
|
|||||||||||||
|
|||||||||||||
