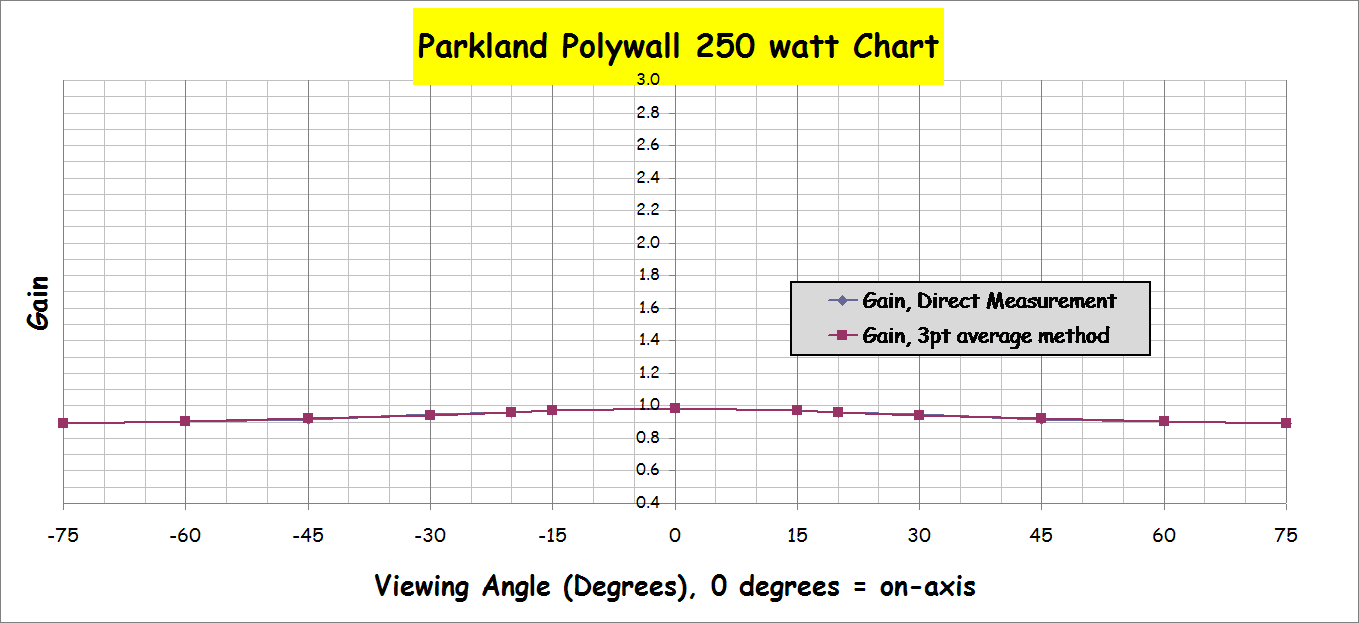

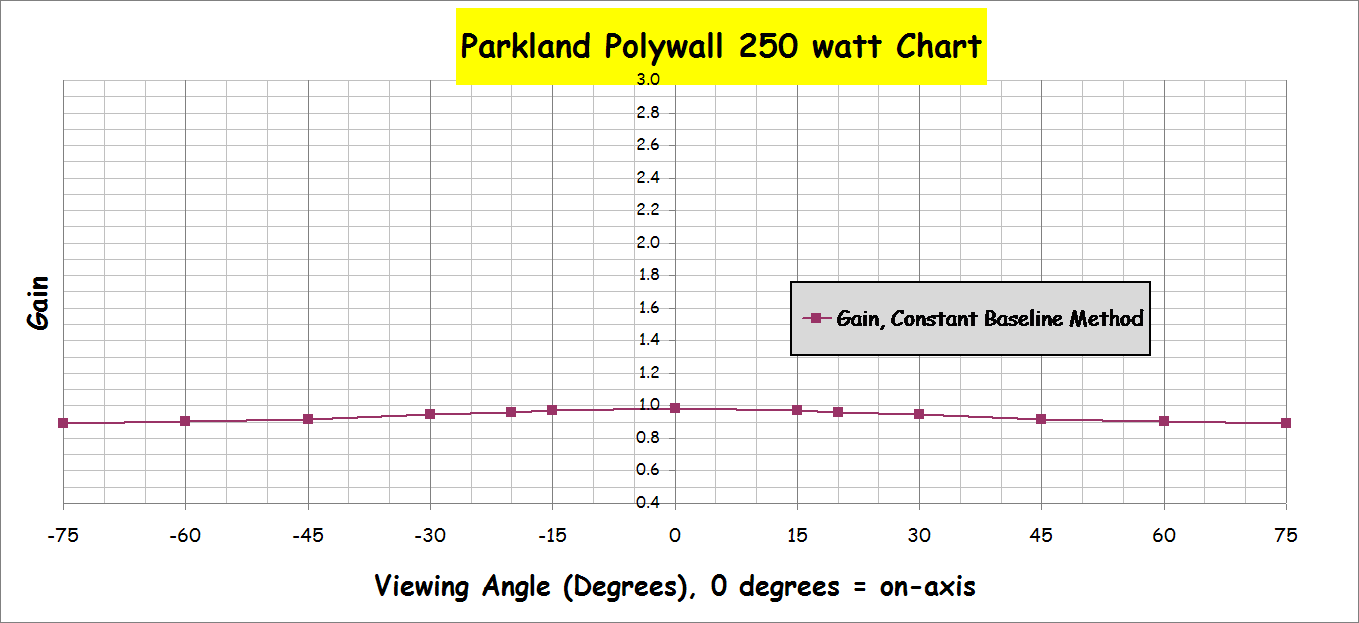

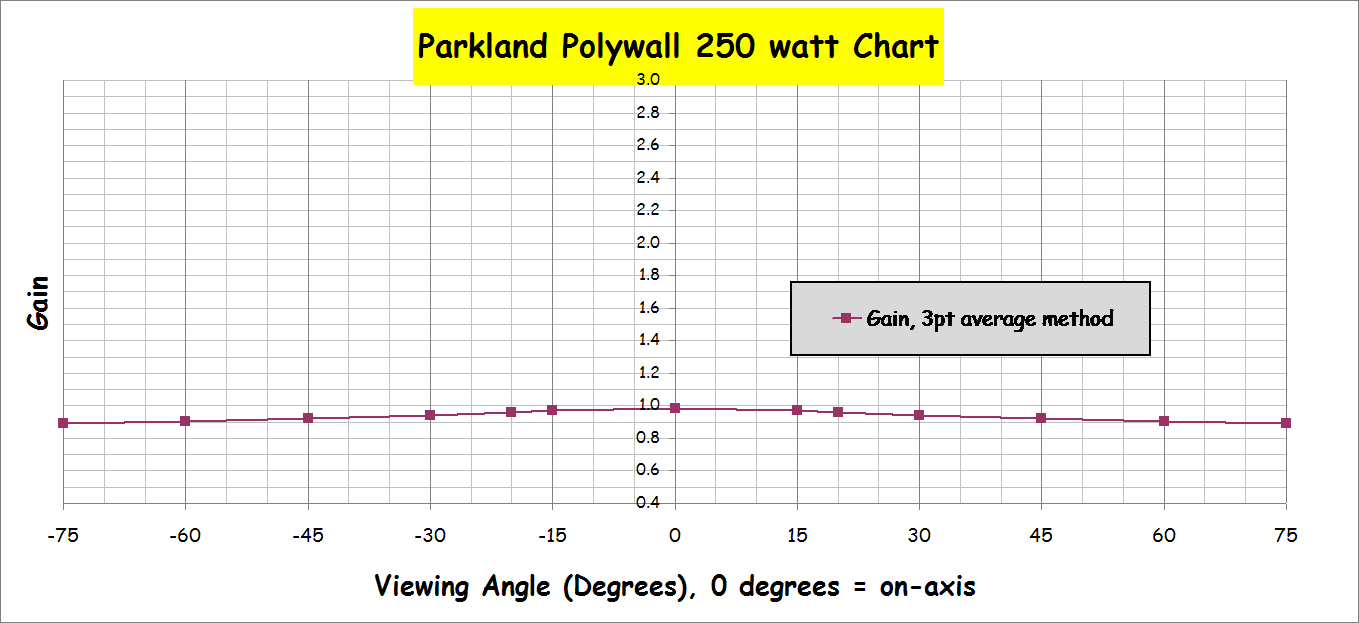

Angle (Degrees, 0 degrees = on-axis) | MgCO | Sample | Gain | Angle (De | MgCO | Sample | Gain, Direct Measu | Gain, 3pt average method | Gain, Constant Baseline Method | ||||
0 | 9.6 | 9.4 | 0.98 | 75 | 9.5 | 8.5 | 0.895 | 0.895 | 0.885 | ||||
15 | 9.6 | 9.4 | 0.98 | 60 | 9.6 | 8.7 | 0.906 | 0.906 | 0.906 | ||||
20 | 9.6 | 9.2 | 0.96 | 45 | 9.6 | 8.8 | 0.917 | 0.920 | 0.917 | ||||
30 | 9.6 | 9.0 | 0.94 | 30 | 9.6 | 9.0 | 0.938 | 0.938 | 0.938 | ||||
45 | 9.6 | 8.8 | 0.92 | 20 | 9.6 | 9.2 | 0.958 | 0.958 | 0.958 | ||||
60 | 9.6 | 8.7 | 0.91 | 15 | 9.6 | 9.4 | 0.979 | 0.972 | 0.979 | ||||
75 | 9.5 | 8.5 | 0.89 | 0 | 9.6 | 9.4 | 0.979 | 0.979 | 0.979 | ||||
-15 | 9.6 | 9.4 | 0.98 | -15 | 9.6 | 9.4 | 0.979 | 0.972 | 0.979 | ||||
-20 | 9.6 | 9.2 | 0.96 | -20 | 9.6 | 9.2 | 0.958 | 0.958 | 0.958 | ||||
-30 | 9.6 | 9.0 | 0.94 | -30 | 9.6 | 9.0 | 0.938 | 0.938 | 0.938 | ||||
-45 | 9.6 | 8.8 | 0.92 | -45 | 9.6 | 8.8 | 0.917 | 0.920 | 0.917 | ||||
-60 | 9.6 | 8.7 | 0.91 | -60 | 9.6 | 8.7 | 0.906 | 0.906 | 0.906 | ||||
-75 | 9.5 | 8.5 | 0.89 | -75 | 9.5 | 8.5 | 0.895 | 0.895 | 0.885 | ||||
|
|||||||||||||
|
|||||||||||||
|
|||||||||||||
